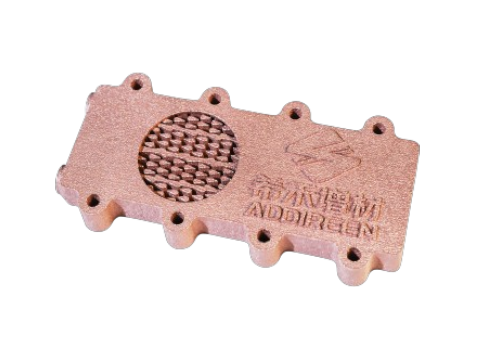

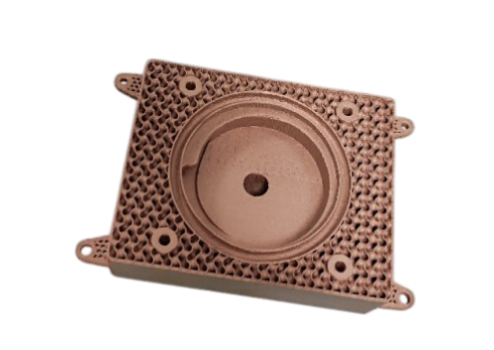

This is the most critical and frequently mentioned advanced application, utilizing TPMS to optimize fluid dynamics and heat exchange.

●Core Structure :

Uses Gyroid, or Diamond lattice structures to fill flow channels.

●Performance Advantage :

Provides massive Surface Area compared to traditional channels, ensuring uniform fluid distribution and eliminating Hot Spots.

●Efficiency Boost :

Heat transfer performance improves by approximately 28% under the same pumping power, with significantly reduced flow resistance.

●Manufacturing :

Monolithic printing eliminates brazing and removes leakage risks.

Designed to minimize pressure drop and fluid resistance using hydrodynamic optimization.

Core Design : Features an array of teardrop-shaped pin fins.

Fluid Dynamics : Compared to cylindrical pins, the teardrop shape significantly reduces fluid flow separation and turbulence, leading to a much lower pressure drop.

Efficiency: Maintains high heat transfer efficiency while allowing for lower pumping power or higher flow rates.

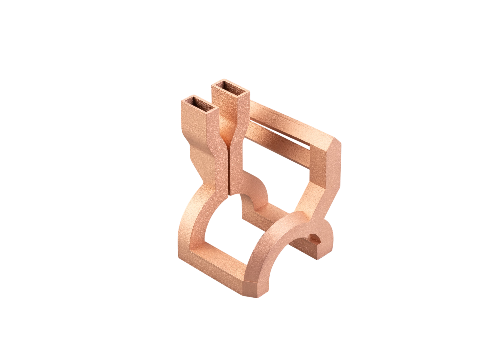

Designed for high-frequency heating systems, eliminating the weak points of traditional brazed assemblies.

●Background: Traditional coils are manufactured by bending copper tubes and brazing them manually. These brazing joints are prone to water leakage and fatigue failure under thermal stress.

●Design Optimization:

     ○One-Piece Construction: Printed as a single monolithic unit using Green Laser PBF, completely eliminating welding seams.

     ○Material: Pure Copper with 101% IACS electrical conductivity.

     ○Conformal Cooling: Internal water channels are designed to follow the coilʼs curvature perfectly.

Results: Service life extended significantly due to higher structural rigidity.

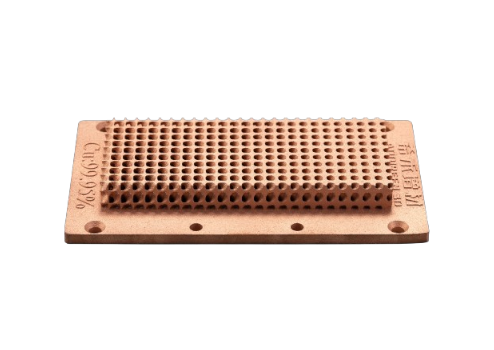

Designed for IGBT power modules in EVs or industrial controls, breaking the limits of traditional cold-forged pin fins.

●Background : Traditional Pin Fin technology has hit a thermal bottleneck.

●Micro-structure Design :

     ○Bottom features Irregular concave and convex textures.

     ○Surface covered with Conical columns with spiral micro-structures, impossible with cold forging.

     ○Added Horizontal square strips for turbulence induction.

●Results : Thermal efficiency improved by 30%-40% within the same installation space.

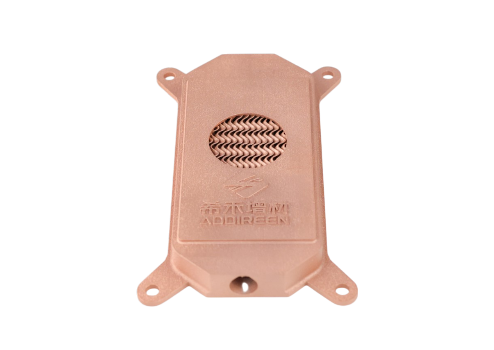

Addressing poor thermal uniformity in traditional heatsinks for servers or high-performance chips.

●Replacement : Replaces copper sheet heatsinks.

●Design Change : Internally features a fin-based, needle+rectangular-based, and a combination of multiple structures.

●Function : Increases surface area and acts as a fluid Guide, significantly improving thermal uniformity.

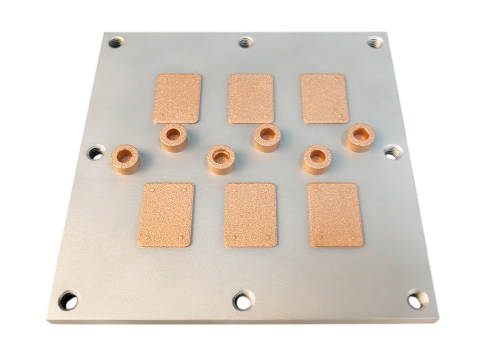

For semiconductor components with extremely high heat flux density, demanding massive efficiency gains.

Goal : Customer required a 5x efficiency increase over the original copper plate solution.

Structure : Combines irregular textures, spiral micro-structure cones, and horizontal strips into a composite design.

Test Results : Final tests showed a 6-7x increase in thermal efficiency.

Process : 3D printed base plate + welded cover (Hybrid manufacturing).

Utilizing 3D printing freedom to create non-linear, conformal cooling channels

●Conformal Cooling : Channels are designed to follow the 3D contour of the heat source, rather than a simple 2D plane.

●Internal Features : Internally features a fin-based, needle+rectangular-based, and a combination of multiple structures to maximize turbulence and surface area in critical zones.

●Benefits : Solves the issue of uneven heating in complex-shaped components where traditional machining cannot reach.
