Multi-Laser Printing
Four-laser coordinated 3D printing system
Large Build Volume for Copper Printing
Large parts formed in one piece
Small Spot Size
Small Spot Size
Product Introduction

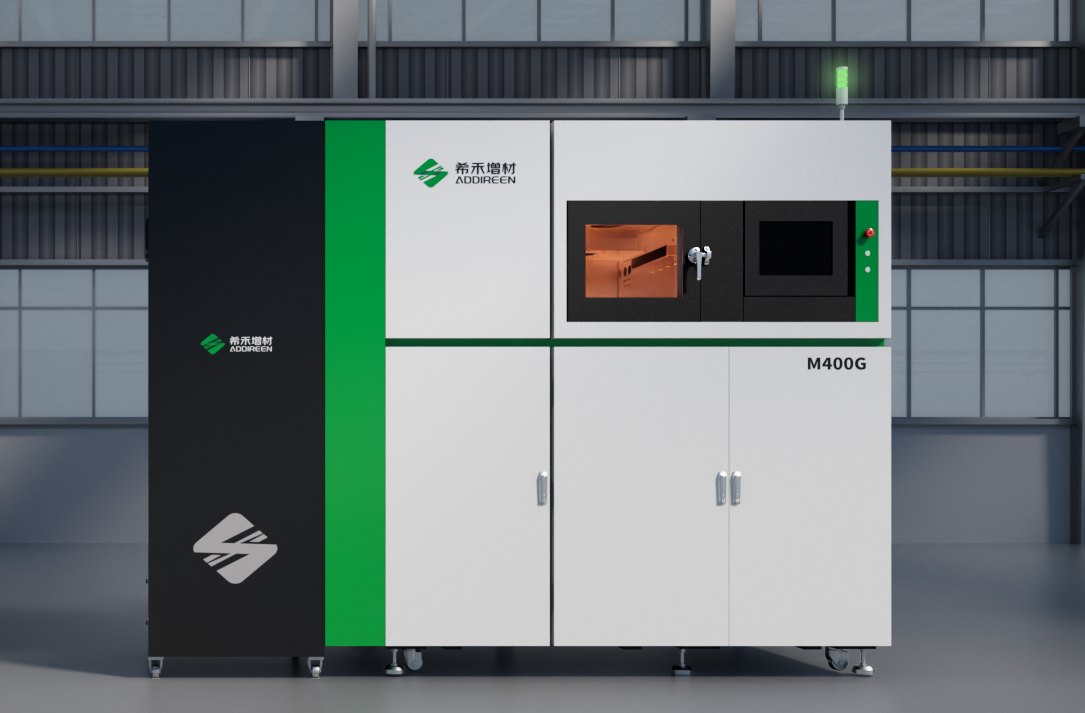

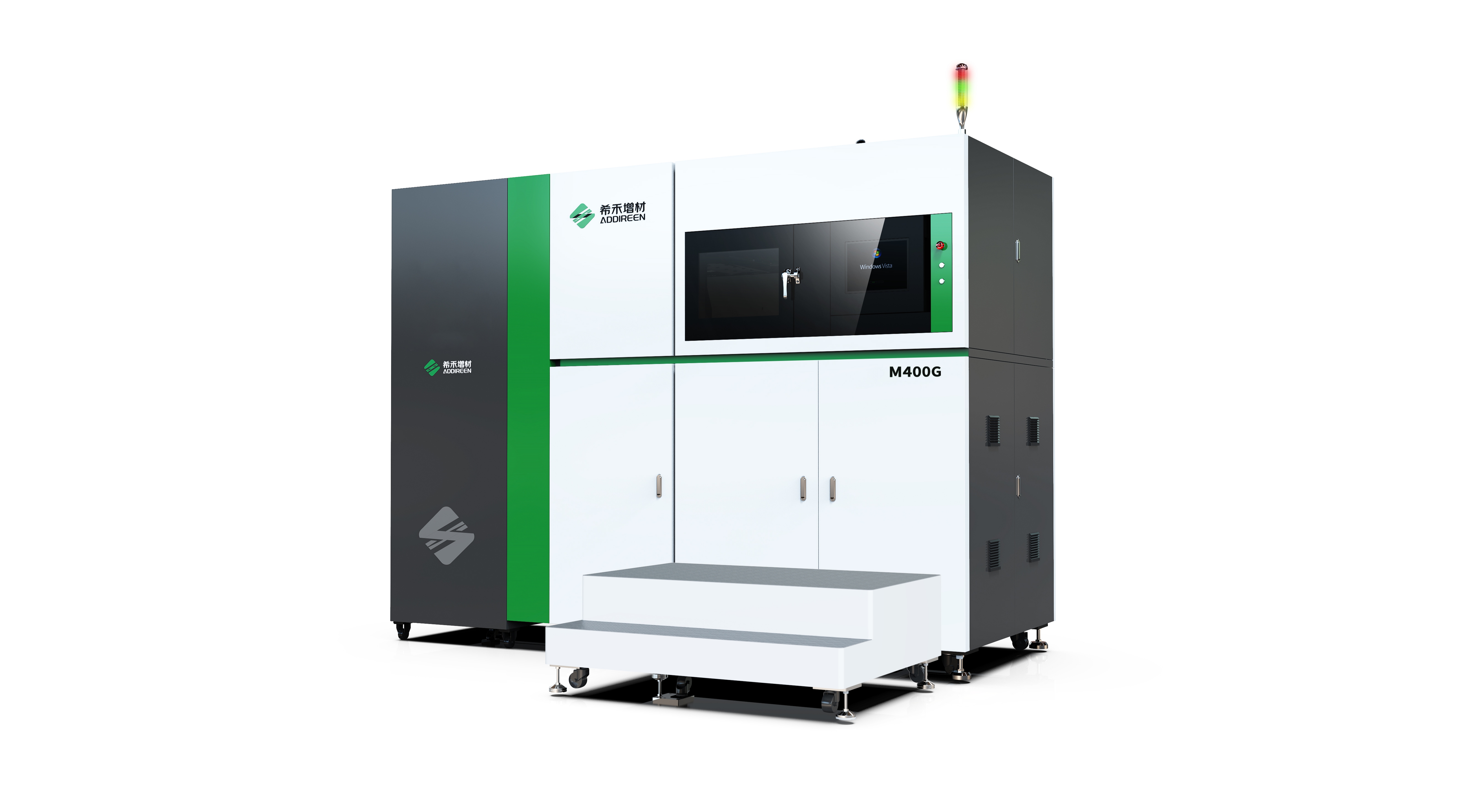

The M400G is a four-laser coordinated 3D printing system with a build volume of 400 × 400 × 400 mm. With an adjustable laser spot size of 20–40 μm, it enables high-precision printing of complex features such as micro-channels. Designed for stable 24/7 continuous operation, the system supports the batch additive manufacturing of pure copper and copper alloys, titanium alloys, stainless steel, and tungsten alloys, meeting the large-scale production needs of the aerospace, new energy, electronic thermal management, and other industries.
Fast Printing Speed in Copper and Copper Alloys
Achieves high-efficiency manufacturing while maintaining excellent performance.
Superior Printing Performance

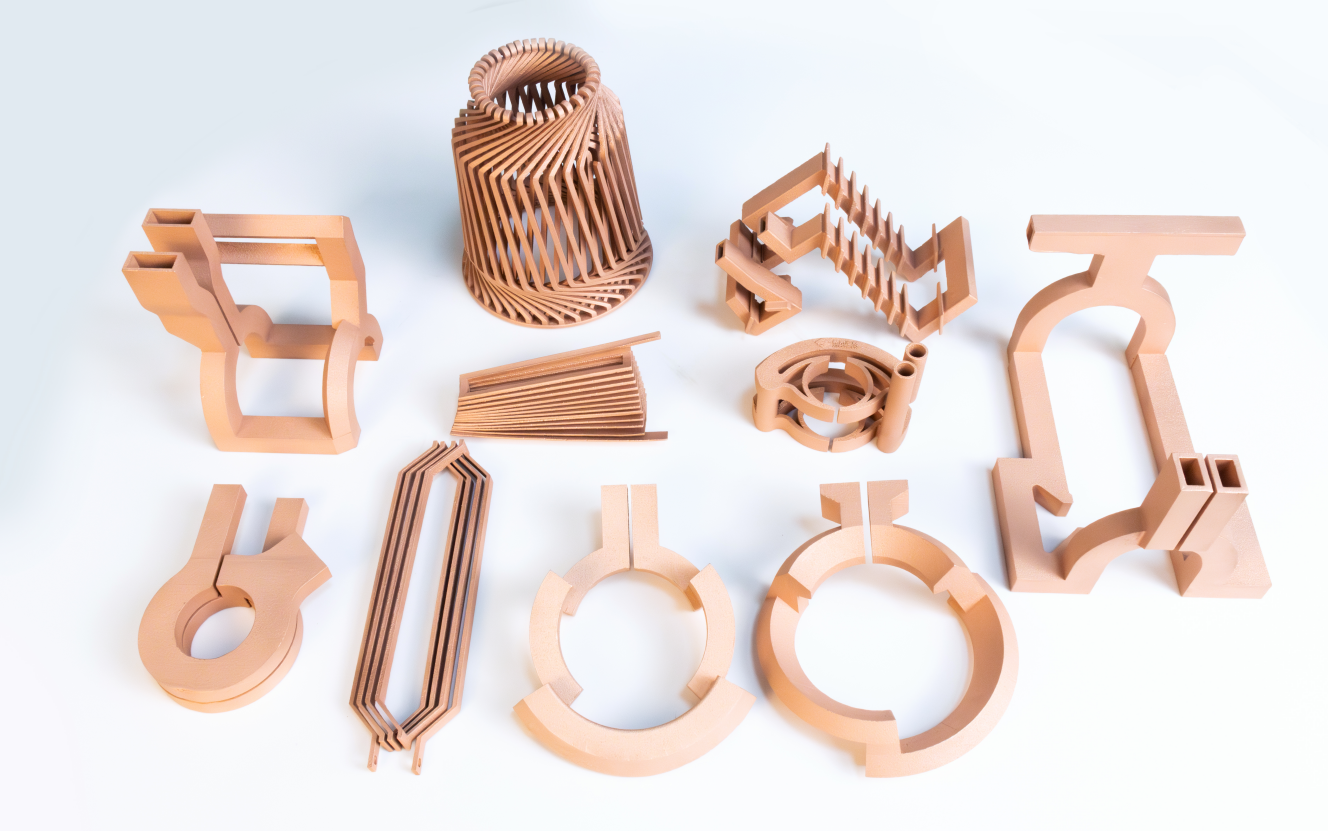

The green laser enables additive manufacturing of highly reflective materials to print more effectively and efficiently. It delivers a high absorption rate, and generates less spatter during printing, Finer details can be achieved due to the small spot size of the green laser. The performance of the printed cooper and its alloy parts is enhanced.
Density≥99.8%
Electrical Conductivity≈101%IACS
Thermal Conductivity≈390W/(m·k)
Min. Wall Thickness 0.08mm
Note: Pure copper heat treated. The test parameter can vary according to factors like printiparameterster, material used.
Reliable and Stable Operation
Equipped with highly customized green optical components.
Software
The M400G is equipped with self-developed ADR BP and ADR Print software.
Supports simultaneous printing of multiple workpieces with different layer thicknesses
Allows users to independently set process parameters for different areas of the model
Intelligent data monitoring for real-time detection of oxygen levels, pressure, and temperature, along with real-time alerts. The system will automatically stop the machine in case of any failure, ensuring safe and reliable printing
XH-M400G
| Model | XH-M400G |
| Build Volume | 400*400*400mm ① |
| Laser Source | Continuous single-mode green fiber laser, wavelength 532nm, optional with 500W, 700W, 1000W |
| Spot Diameter | 20-40μm |
| Focusing System | F-theta lens focusing |
| Printing Speed | 30-120cm³/h |
| Layer Thickness | 20-120μm |
| Machine Dimension | 34100*1490*2630mm |
| Machine Weight | Approx. 3.7T |
| Compatible Materials | Pure copper, copper alloys, refractory metals, composite materials (Cu-based diamond composite, Cu-based graphene), other common metal materials. |
| Note: (1) Height of build plate is included |
